Vibia

Wireflow Free-Form

Wireflow Free-Form

Wireflow Free Form is designed by Arik Levy. The elegant structure of fine cables and LED terminal by Wireflow allows the combination of multiple individual pieces to carry out major graphic lighting installations. Employing CREA product configurator software, the design can be modified to adapt to your specific project requirements. The electrical connection point can be positioned on the ceiling or wall. Available with or without the glass diffuser andup to nine LEDs.

Brand

Vibia

Type

Pendant
Surface Canopy
Polycarbonate diffuser

Material

Ceiling rose: Steel
Rods: Steel
Body: Aluminum
RAL 9005

Designer

Arik Levy

Electrical Characteristics

IP 20
5 × LED 4,48W 350mA
Led 2700K CRI>80 2451 lm 109 lm/W
Fixture 1133 lm 50.35 lm/W
Driver included: CC - Constant Current 350 mA 110~240V 50/60Hz
DALI,1-10,Push dim

Photometric Data

Efficiency: 46.23%
Total Flux: 2451.35

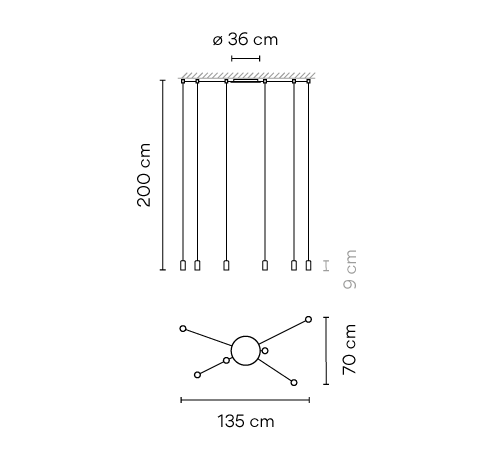

Dimension

1 Box 0.25x0.42x0.42 m.
Vol 0.0441 m3
Gross weight 5.5 kg
Net weight 5 kg

Light Temperature

2700K

Colour/Finish

Black
