Vibia

Wireflow Lineal

Wireflow Lineal

Designed by Arik Levy, the 2D Lineal Wireflow pendant is characterised principally by its black electrical cable supported by a structure of lacquered metal rods with 4.5W LED light sources. Its square appearance is a structure of fine cables finished with ten LED terminals. Available with or without a glass diffuser for greater light control. Employing CREA product configurator software, the design can be modified to adapt to your specific project requirements.

Brand

Vibia

Type

Pendant
Surface Canopy
Polycarbonate diffuser

Material

Body: Aluminum
Ceiling rose: Aluminum
Horizontal rods: Steel
RAL 9005

Designer

Arik Levy

Electrical Characteristics

IP 20
10 × LED 4,5W 700mA
Led 2700K CRI>80 4903 lm 109 lm/W
Fixture 2266 lm 50.35 lm/W
Driver included: CC - Constant Current 700 mA 220~240V 50/60Hz
1-10,Push dim

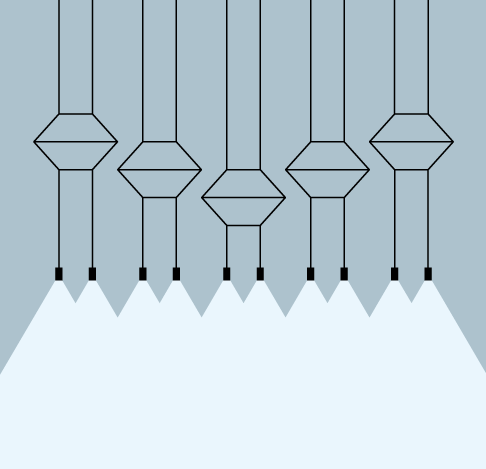

Photometric Data

Efficiency: 46.23%
Total Flux: 4903.00 lm

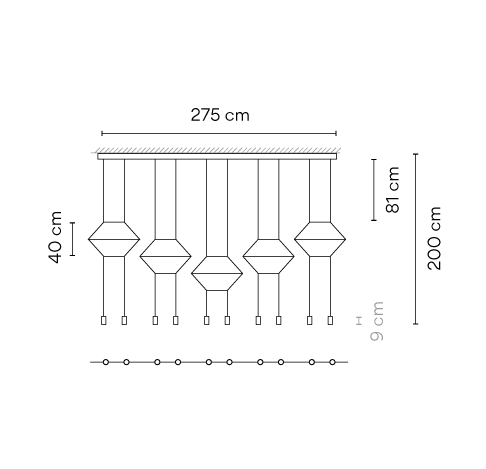

Dimension

1 Box 0.075x0.2x3.3 m.
Vol 0.0495 m3
Gross weight 11.5 kg
Net weight 9.5 kg

Light Temperature

2700K

Colour/Finish

Black
